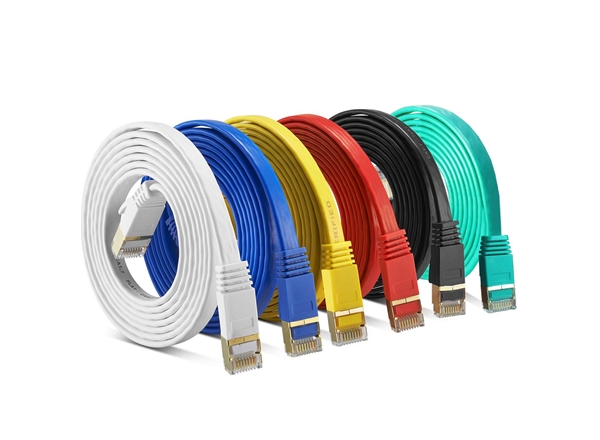

Network cable manufacturers produce seven types of SFTP pure copper flat network cables. Product introduction:

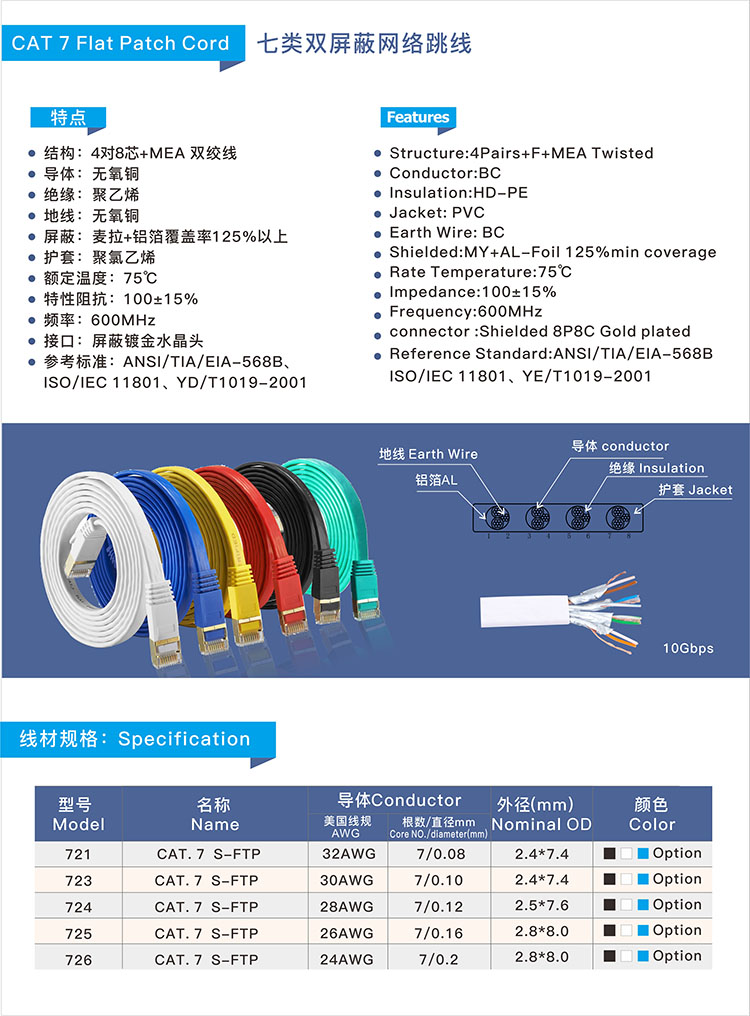

Product name: Cat7 flat network cable, Cat7 cable is an 8-core shielded wire, each pair has a shielding layer (usually shielded by metal foil), and then there is a shielding layer (usually metal braided wire) outside the 8 cores Net shielding DINTEK), the theoretical transmission rate of the seven-category line can reach 10Gbps.

Core wire: 4 pairs of 8 core wires
Crystal head: shielded transparent 8P RJ45 crystal head
Conductor material: oxygen-free copper (BS/BC)
Conductor type: multi-strand
Conductor size: 32AWG (7*0.08mm)/30AWG (7*0.10mm)
Shape: ultra-thin and flat, OD: 2.35*7.2mm
Core wire: HDPE
Outer quilt: conventional environmentally friendly PVC, low-smoke halogen-free (LSZH)/CM/VW-1 outer quilt can be customized.
Certificate: ROHS/CE/REACH
Scope of application: routers, switches, personal computers, data centers, monitoring, etc.

Network cable manufacturers produce seven types of SFTP pure copper flat cable product performance:
Type 7 flat cable transmission speed and bandwidth: The quality of the twisted pair is one of the key factors that determine the bandwidth of the LAN. The type 7 flat cable transmits 10 Gigabit, with a bandwidth of 600MHZ
Compatible: Category 6 network cable, Category 6 network cable, Category 5 network cable, Category 3 network cable, Category 4 network cable
Packing: single bag/blister/color box, etc. OEM/ODM can be customized
Brand: Ruilianpu or OEM
Length: 0.15m-50m, the price is calculated according to the specific length

Network cable manufacturers produce seven types of SFTP pure copper flat cable product advantages:

Machine molding, breaking the traditional manual crimping, faster connection, plug and play, each pair of core wire twisted makes the product performance more stable, the price of the super five network cable is excellent, and it can withstand comparison.

Printed on the outer cover: CAT7 FLAT + conductor size + conductor material, environmentally friendly and resistant to bending, more durable, and has a certain flame retardancy.

U-shaped pull production instead of the traditional segmented type, do one test and one test, no matter the size of the order, it can be arranged, 100% testing

The flat wire has a flat shape and is suitable for laying flat on the ground. It uses a small space and does not occupy any unnecessary indoor space. It can walk in any narrow corner of the home.

Product production:

Extrusion--twisting--pressing the outer quilt--threading--pressing the small diamond--forming--testing--packing. Every process is produced by our factory
